Additional Information

OPERATIONS & ELECTRICAL
Input voltage : 120~347V
Power factor : 0.9
Total harmonic distortion (THD) : <20%
Dimming : 0-10V external dimming down to 10%
Lumens per Watt : 88 LPW at 90CRI white, 75 LPW at 90CRI black
Distribution : Lambertian

Features & Benefits

Direct and Indirect Light
The SPS provides both up and down light capabilites to enhance your project space


Anti Glare Finish
Custom Eralux anti-glare black and white finishes helps reduce glare off of the fixture's housing, accenting your project space


Power and CCT Switchable
Power and CCT switch to change between 3 CCT options which vary from warm to cool light on site


Mulitple Sizes
Available in 2, 4, 6, and 8 feet along with various shaopes such as L, X and T fixtures. Easily connect these fixtures to create continuous runs and creative designs.


Description

The SPS series is a revolutionary compact product with the ability to adjust lumen output and offers a variety of up light and downlight options. It even offers the unique option of 100% up light. Whether its pendant mount or wall mount, the installation process is simple and will result in an elegant lighting solution.

Downloads

Install Instruction SPS

Download

Spec Sheet SPS

Download

SPS IES Files

Download

Product Configurator

Your Product Code :

AE-SF-SPS
GEN
VOLTAGE
LENGTH
POWER
ACCENT
CRI
CCT
DIMMING
LENS
FINISH
BEAM
ACCESSORIES

Length

2ft

4ft

6ft

8ft

Output

1760lm

2640lm

3520lm

4400lm

5280lm

7040lm

8800lm

Color and color temperature

90 CRI

3000K

3500K

4000K

5000K

CCT Tunable

Lumen Tunable

Color Rendering

Silver Finish

Nebula White Finish

Atomic Black Finish

Optics

Downlight

Side Wall Mount Uplight _ Downlight

Side Wall Mount Uplight

Side Wall Mount

Uplight _ Downlight

Uplight

Control

0-10V

ON OFF

Accessories

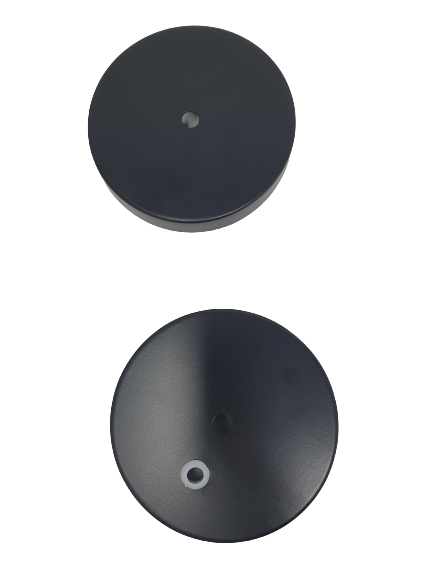

Black Canopy Set

Black Powercord

Black Wall Mount Kit

SPS Link

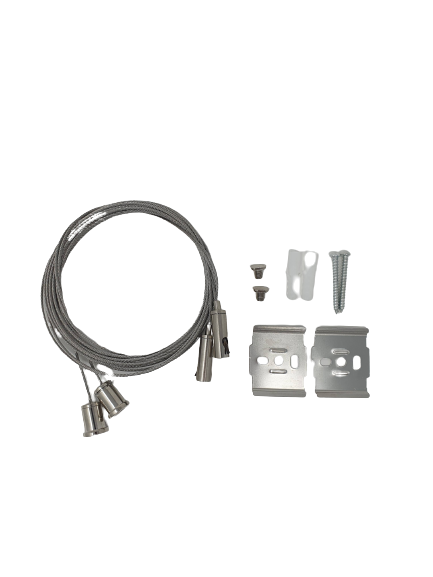

SPS Suspension Kit

White Canopy Set

White Powercord

White Wall Mount Kit

Certifications
